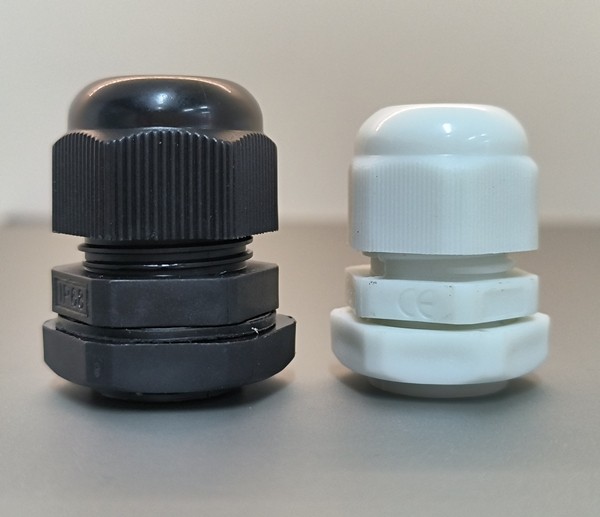

Nylon Cable Gland

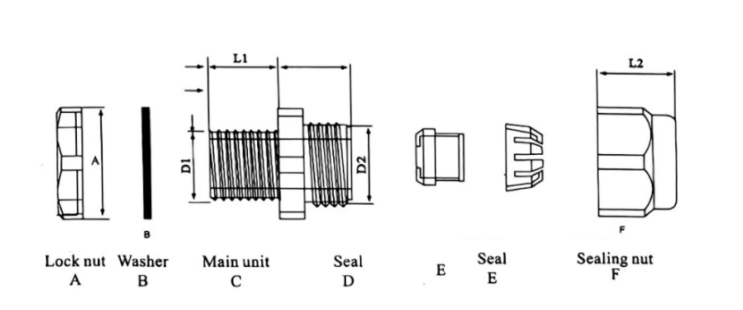

Product Material: Location A.C.E and F made of PA, Location B & D made of Chemigum

Specification Of Thread: Metric、Din、NPT

Metric Model Range::M8,M10,M12,M16,M18, M20,M22,M24,M25, M30, M32,M36,M40, M50,M63, M71, M75, M80, M88, M100, M114

Din Model Range: PG7,PG9, PG11, PG13.5, PG16, PG19, PG21, PG24, PG25, PG29, PG36, PG42, PG48, PG63

NPT Model Range: NTP 1/2”, NTP 3/4”, NTP 1”, NTP 1/1/4”,NTP 1/12”,NTP 2”

Working Temperature: Static: -40°C～ + 100°C, temporarily can reach 120°C

                                             Dynamic: -20°C～ + 80°C, temporarily can reach 100°C

Color: Black and grey ( can be customized)

Protection Classification: IP68

Property:The special design of the clamping grip and seal, combined with the sealing nut, allows for time-saving and convenient assembly. It has a wide range of cable clamping and particularly strong tensile strength. It

                is waterproof, dustproof, acid-resistant, salt-resistant, acid and alkali-resistant, alcohol-resistant, oil-resistant, and resistant to general solvents

Approvals: CE/ROHS/ REACH
